Deluge valve systems are a lifeline in high-risk industries, delivering rapid, widespread fire suppression to protect lives and assets. By flooding an area with water or foam through open nozzles, triggered by advanced detection systems, they tackle intense fires before they spiral out of control. Regular testing, adherence to NFPA standards, and proper design keep these systems reliable and effective.

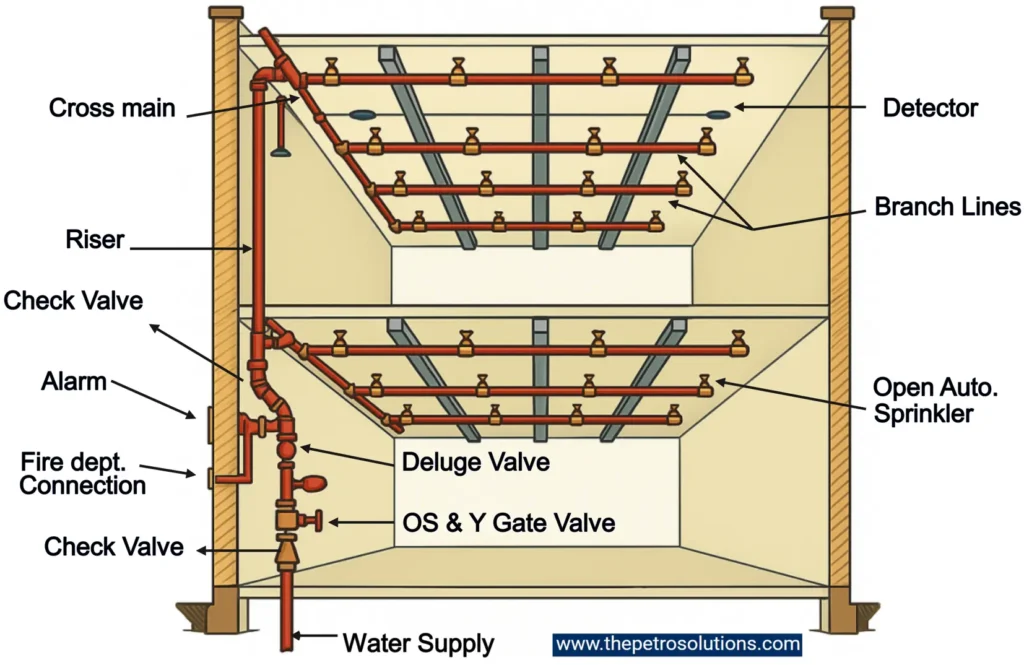

What Is a Deluge Valve System?
A deluge valve system is a specialized fire suppression setup designed to deliver a massive volume of water or foam across a large area in an instant. Unlike standard sprinkler systems, which activate individual sprinklers when heat is detected, deluge systems use open nozzles that release water simultaneously when triggered. This makes them ideal for high-risk areas like petroleum refineries, chemical plants, power plants, and storage facilities where flammable materials pose significant fire hazards.
Defined by NFPA, a deluge system is an open-head sprinkler setup connected to a water supply through a deluge valve, which is activated by a detection system. The goal is to control or extinguish rapidly spreading fires, protecting lives, equipment, and the environment.
Why Choose a Deluge Valve System?
Deluge systems are built for speed and coverage, making them the go-to choice for high hazard environments. Here’s why they are critical:
- Rapid Response: They flood the entire area instantly, preventing fire spread in seconds.
- Wide Coverage: Perfect for large spaces like aircraft hangars or storage tanks.
- Versatility: Can use water or foam, ideal for flammable liquid fires.
- Reliability: With fewer moving parts in the piping, they require less maintenance and are highly effective, controlling 96.2% of fires based on decades of fire data.
However, their high-water output can cause water damage, so precise detection and proper design are essential to avoid unnecessary activations.
How Does a Deluge Valve System Work?
The working of a deluge valve system lies in its ability to act swiftly and decisively. Here’s a step-by-step breakdown of its operation:
- Fire Detection: The system relies on a separate detection network, such as heat, smoke, or flame detectors (e.g., fusible plugs or UV/IR sensors), installed in the protected area. When a fire is detected, these sensors send a signal to the deluge valve.
- Valve Activation: The deluge valve, the heart of the system, remains closed in standby mode, holding back pressurized water. Upon receiving the signal, it opens fully, either through electrical (solenoid), hydraulic (wet pilot line), or pneumatic (dry pilot line) mechanisms.
- Water or Foam Discharge: Once the valve opens, water or foam rushes through the piping network and out of all open nozzles simultaneously, blanketing the area to cool surfaces, suppress flames, or disperse flammable vapors.
- Alarm Activation: Water flow triggers alarms, such as water motor gongs or pressure switches, alerting personnel and emergency responders.
- Manual Shutdown and Reset: The system continues discharging until manually shut off. After the fire is controlled, the valve is closed, the system drained, and reset for future use.
Some modern systems include recyclable valves that automatically shut off when the fire is under control and reopen if it rekindles, optimizing water use.
Key Components of a Deluge Valve System
A deluge valve system is a well-coordinated network of components working together. Here’s a look at the main components:

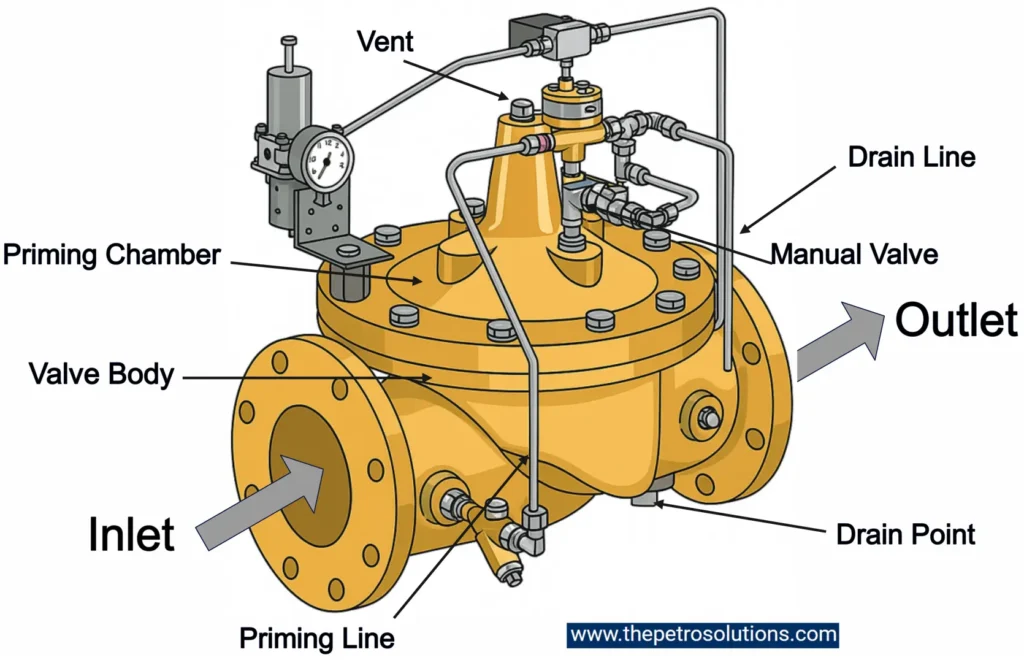

- Deluge Valve: The core component, controlling water flow with a clapper or diaphragm mechanism. It’s designed for rapid, reliable activation.
- Open Nozzles: Unlike standard sprinklers with heat-sensitive caps, these are always open, ensuring simultaneous water discharge in patterns like spray-filled cones or spheres.
- Detection System: Includes heat, smoke, or flame detectors, often linked to a fire alarm control panel, to trigger the valve.
- Piping Network: Distributes water or foam, typically made of galvanized steel or corrosion-resistant alloys to handle high-pressure flows.
- Water/Foam Supply: A robust source, like a fire pump, storage tank, or municipal main, ensures adequate volume and pressure.
- Pressure Gauges and Alarms: Monitor system integrity and alert personnel when water flows or pressure drops.
- Strainers: Prevent debris from clogging nozzles, ensuring consistent flow.
Applications in High-Hazard Industries
Deluge valve systems are important in environments where fires can escalate rapidly. Common applications include:
- Oil and Gas Platforms: Protecting against hydrocarbon fires.
- Chemical Plants: Controlling fires involving flammable liquids or reactive chemicals.
- Aircraft Hangars: Safeguarding planes and fuel storage per NFPA standards.
- Power Plants: Protecting transformers and turbines from high-voltage fires.
- Storage Facilities: Preventing fires in high-piled combustible materials like plastics or organic peroxides.
- Water-Cooling Towers: Delivering high discharge rates to minimize freezing risks.
- Marine Vessels: Using marine-listed pumps to protect high-risk areas.
These systems often work alongside safety measures like HAZOP analysis and emergency shutdown protocols for comprehensive risk management.
Design and Installation Requirements
To ensure effectiveness, deluge systems must meet standards. Key requirements include:
- Hydraulic Calculations: Ensure adequate water flow, e.g., 0.5 gpm/ft² (20.4 mm/min) for aircraft engine test cells.
- Water Supply: Must support maximum demand plus hose streams (e.g., 500 gpm for 1 hour in airport terminals).
- Nozzle Spacing: Window sprinklers spaced no more than 8 ft apart unless listed otherwise.
- Pressure Requirements: Minimum 7 psi discharge pressure for sprinklers.
- Freeze Protection: Valve rooms must be heated (not with heat tape) to prevent freezing.
- Piping: Use galvanized or corrosion-resistant materials, flushed at rates like 1000 gpm for 8-inch pipes to remove debris.
Maintenance Tips for Deluge Valve Systems
Keeping a deluge system in shape requires regular maintenance. Here’s what to focus on:
- Annual Discharge Tests: Verify nozzle orientation and automatic operation. Ensure blow-off caps protect nozzles from debris.
- Strainer Maintenance: Flush strainers periodically to clear obstructions and clean strainer baskets.
- Detection System Checks: Inspect sensors for corrosion or damage. Test pneumatic or hydraulic systems for reliability.
- Foam-Water Systems: Test foam concentration annually (within 10% of design standards) and pressure-test tanks every 10 years.
- Valve Inspections: Check for leaks or corrosion, following manufacturer guidelines.
- Main Drain Test: Measure static and residual water pressure to confirm supply adequacy.
- Freeze Protection: Maintain water above 42°F in cold climates to prevent pipe bursts.
Common Issues to Watch For:
- Clogging: Debris can block nozzles. Regular flushing helps.
- Corrosion: Use corrosion-resistant materials like duplex stainless steel.
- Accidental Discharge: Prevent false activations with reliable detection and higher-rated thermal detectors in hot environments.
Challenges and Solutions
Deluge systems face some challenges:
- Water Damage: High water output can damage equipment. Solution: Use precise detection to avoid false activations.
- Freezing: Cold climates risk pipe bursts. Solution: Use dry pilot lines or heated valve rooms.
- Drainage: Poor drainage can cause pooling. Solution: Ensure adequately sized drains.
- Maintenance Complexity: Open nozzles and detection systems need careful upkeep. Solution: Follow NFPA guidelines and train staff.

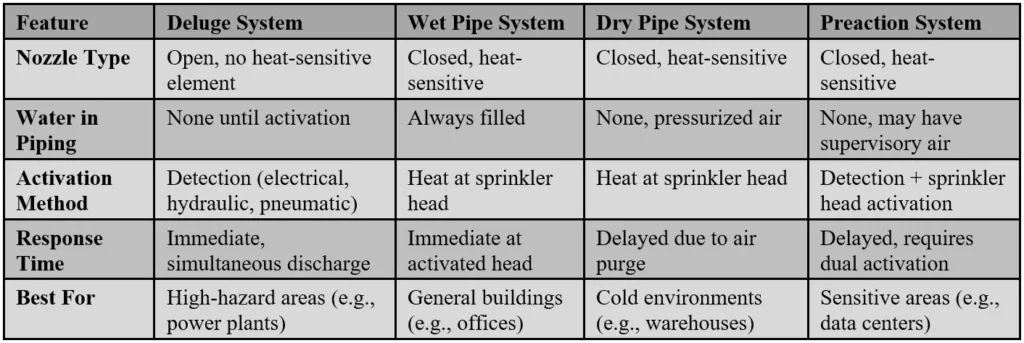

Deluge Valve System vs. Other Sprinkler Systems
People Also Asked Questions with Answers
What’s the difference between a deluge and a sprinkler system?
Deluge systems release water through all open nozzles simultaneously, triggered by a detection system, making them ideal for high-hazard areas. Standard sprinkler systems activate individual heads when heat melts a cap, suitable for lower-risk settings like offices or warehouses.
How often should deluge systems be tested?
Annual discharge tests verify coverage and functionality, while quarterly inspections check components like strainers and detectors. NFPA outlines specific intervals, from daily freeze checks to 5-year tests.
Can deluge systems use foam instead of water?
Yes, foam-water deluge systems are common for flammable liquid fires, smothering flames by cutting off oxygen and cooling fuel surfaces.
What causes unintended deluge valve activation?
Overheating from hot processes, lack of ventilation, or mechanical damage can trigger the system. Using higher-rated detectors and regular maintenance prevents this.
Where are deluge valve systems typically used?
They are used in high-hazard areas like petroleum refineries, chemical plants, aircraft hangars, power plants, and storage facilities for combustible materials.
References:
- National Fire Protection Association (NFPA), Fire Protection Handbook, 2008.
- Nolan, D. P., Handbook of Fire and Explosion Protection Engineering Principles, William Andrew Applied Science Publishers, Norwich, NY, 2010.
- Jones, A. Maurice, Jr., Fire Protection Systems, Jones & Bartlett Learning, 2021.
- Duncan, Justin, Fire Protection Systems, American Society of Plumbing Engineers
- NFPA 13: Standard for the Installation of Sprinkler Systems, 1996 Edition.
- https://www.processindustryforum.com
- https://www.forede.com
