Distillation is like the backbone of many industries, especially in chemical manufacturing, petroleum refining, oil and gas and even beverage production. Distillation columns separate liquid mixtures into their individual components with high purity. Whether you’re a process safety engineer, a plant operator, or a student diving into chemical engineering, understanding how a distillation column works is essential. In this blog, we’ll break down the core principles of distillation columns in an easy way for the better understanding.
What is a Distillation Column?
The process relies on the principle that different substances boil at different temperatures. It separates the mixture of different components into their individual components on the basis of their boiling points difference. The column creates a series of stages where vaporization and condensation happen, allowing the more volatile (easily evaporated) component to rise to the top and the less volatile one to collect to the bottom of the column.
How Does Distillation Work?

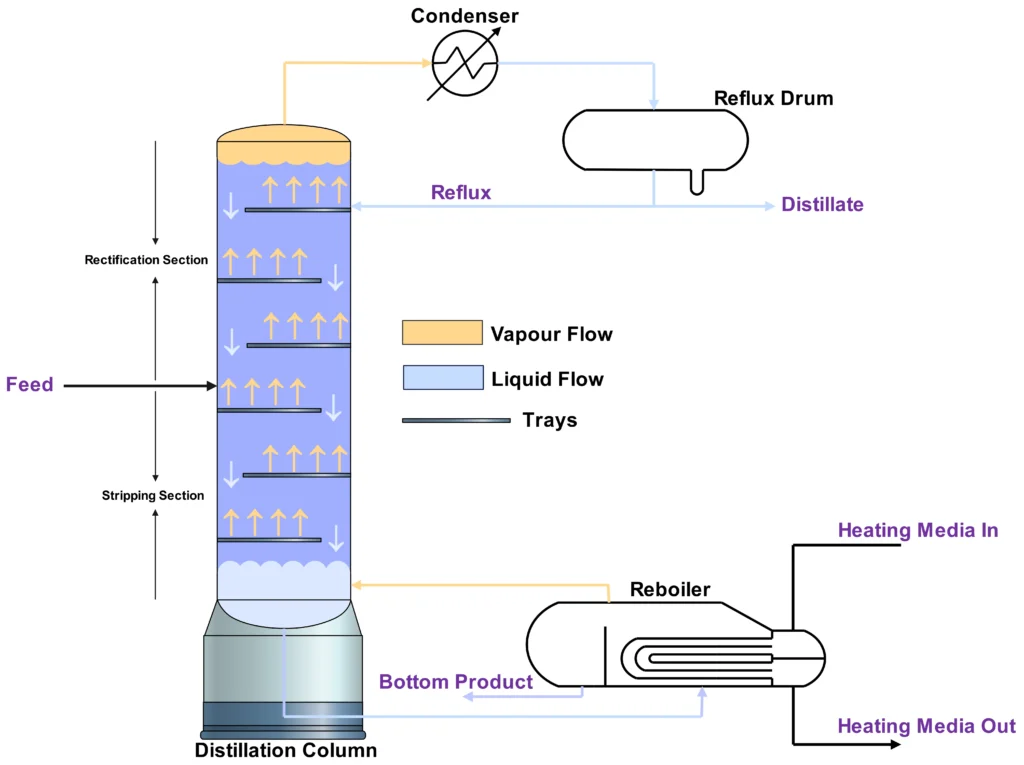

Distillation relies on vapor-liquid equilibrium, the balance between a liquid and its vapor at a specific temperature and pressure. Here’s a simplified breakdown of the distillation process:
- Feed Input: The feed enters the column, splitting it into a rectifying zone (above the feed) and a stripping zone (below the feed).
- Heating: At the bottom, a reboiler heats the liquid, turning some of it into vapors. These vapor rises through the column in upward direction.
- Vapor-Liquid Contact: Inside the column, trays or packing materials facilitate contact between the rising vapor and descending liquid. This interaction allows components to separate based on their volatility.
- Separation: Lighter components, with lower boiling points, concentrate in the vapor and move upward, while heavier components remain in the liquid and flow downward.
- Condensation: At the top, a condenser cools the vapors, turning it back into a liquid (the distillate), which is collected as a product. Some of this liquid is returned to the column as reflux to enhance separation and increase purity.
- Bottoms Collection: The heavier components collect at the bottom as the bottom product.
Equilibrium-Stage Concept
The main technique of a distillation column lies in its equilibrium stages. Each stage (typically a tray or a section of packing) represents a point where vapor and liquid reach a balance, or equilibrium, in terms of composition. The more stages a column has, the better the separation, as each stage allows for further separation of the component concentrations.
- How it works: At each stage, the vapor and liquid exchange components. Lighter components vaporize more easily, enriching the vapor phase, while heavier components condense, enriching the liquid phase.
- Key takeaway: The number of stages determines how effectively the column can separate components with close boiling points.
Thermodynamic Data
For a distillation column to work efficiently, engineers need accurate thermodynamic data, such as vapor-liquid equilibrium (VLE) data. This data tells us how components distribute between the liquid and vapor phases at different temperatures and pressures.
- K-Value Correlations: These are mathematical models used to predict how much of each component will be in the vapor versus the liquid phase. For example, a high K-value means a component prefers the vapor phase.
- Importance: Accurate K-values ensure the column is designed to achieve the desired separation without wasting energy.
Degrees of Freedom and Design Variables
Designing a distillation column involves balancing several variables, like feed rate, reflux ratio, and column pressure. The degrees of freedom refer to the number of independent variables that can be adjusted to control the column’s performance.
- Example: For a simple column with one feed, a condenser, and a reboiler, you might adjust the reflux ratio (the amount of condensed liquid returned to the column) to optimize separation efficiently.
- Why it matters: Understanding these variables helps engineers to fine-tune the column for maximum efficiency, purity and safety.
Types of Distillation Processes
Types Based on Operation
- Continuous Distillation vs Batch Distillation: Continuous distillation runs continuously to separate mixtures into pure components with continuous addition of feed and removal of products respectively. Ideal for large-scale industries. While in batch distillation, the column once filled and then after achieving separation of desired components, its refilled. Used for small scale processes.
Types Based on Number of Components
- Binary Distillation: Separates two-component mixtures, like benzene-toluene.
- Multicomponent Distillation: Handles mixtures with three or more components, like crude oil.
Types Based on Internals
- Plate (Tray) Distillation Column: Uses trays like sieve, bubble cap or valve trays for the separation of the components.
- Packed Distillation Column: Employs packing materials like raschig rings, pall rings or other types for the separation.
Other Distillation Types
- Simple Distillation: A single-stage process vaporizing and separating liquids. Used for quick, rough separations in petroleum refining.
- Fractional Distillation: Employs multiple stages for precise separations, ideal for producing high-purity products like gasoline or diesel in oil refinery.
- Steam Distillation: Adds steam to lower boiling points, protecting heat-sensitive mixtures, often used for essential oils.
- Vacuum Distillation: Lowers pressure to reduce boiling points, ideal for heat-sensitive mixtures in chemical plants using packed columns.
- Extractive Distillation: Uses a solvent to ease separation of tough mixtures, vital for petrochemical processes.
- Azeotropic Distillation: Adds an entrainer to break azeotropes, enabling separation of mixtures like ethanol-water for biofuels.
Designing a Distillation Column
Designing a distillation column involves determining key parameters like the number of stages, feed tray location, and reflux ratio. Following are two practical methods for analyzing and designing distillation columns.
McCabe-Thiele Method
The McCabe-Thiele method is a graphical method for binary systems, plotting the vapor composition (y) against the liquid composition (x) on an xy diagram. It uses operating lines for the rectifying and stripping sections to show how compositions change from stage to stage. The method helps determine:
- The number of stages needed by stepping between the VLE curve and operating lines.
- The minimum number of stages (at total reflux) and minimum reflux ratio (for infinite stages).
Fenske-Underwood-Gilliland (FUG) Method
For multicomponent systems, the FUG method provides quick estimates:
- Fenske Equation: Calculates the minimum number of stages at total reflux.
- Underwood Equations: Estimate the minimum reflux ratio for a given separation.
- Gilliland Correlation: Relates the actual number of stages to the minimum values.
- Kirkbride Equation: Determines the feed stage location by balancing the rectifying and stripping sections.
People Also Asked Questions
What is the main purpose of a distillation column?
The main purpose is to separate liquid mixtures into their components based on differences in boiling points, producing high-purity products for industries like oil refining and chemical processing.
Why is relative volatility important?
Relative volatility measures how easily two components can be separated. Higher values indicate easier separations, requiring fewer stages and less energy.
Why is distillation energy-intensive?
Distillation requires significant heat to vaporize liquids and cooling to condense vapors, resulting in a thermodynamic efficiency of about 10%.
What is reflux in distillation?
Reflux is the portion of condensed vapor returned to the column. It enhances separation by providing more liquid for vapor-liquid contact, increasing the purity of the top product.
What factors affect the number of stages needed?
The number of stages depends on relative volatility, desired separation, and reflux ratio. Higher relative volatility or lower separation requirements reduce the number of stages needed.
